Multipart Access Cover System (MACS)

Get a quote now

Add the Multipart Access Cover System (MACS) to your quote and our team will confirm pricing, stock availability and delivery timeframes for your project.

Need technical advice first? Call us on (03) 9335 5355 or send us an email sales@accesscoversaustralia.com.au.

Class

Quantity

Request Quote

Benefits

Global patent held by Access Covers Australia (Patent Number PCT/AU/050533), protected in Australia and internationally
Full ductile iron system, removing the dissimilar metal components that cause corrosion in galvanised beam systems
Modular design in 250mm increments, giving infinite metric sizing rather than fixed imperial options
Tapered beam design that eliminates the need for a rebate beam on site, allowing for a reduction in slab thickness
Interchangeable parts and a uniform set-up for internal formwork
Minimum 50-year design life
Watertight, airtight and gas-tight performance
Tested to Australian Standard AS3996:2019 and compliant with EN124
Available up to Class G loading (900kN), with Class D a CitiPower approved product
Integrates directly into 3D design drawings, with CAD files provided for project specific insertion
Delivered with a certified lifting system for placement

Description

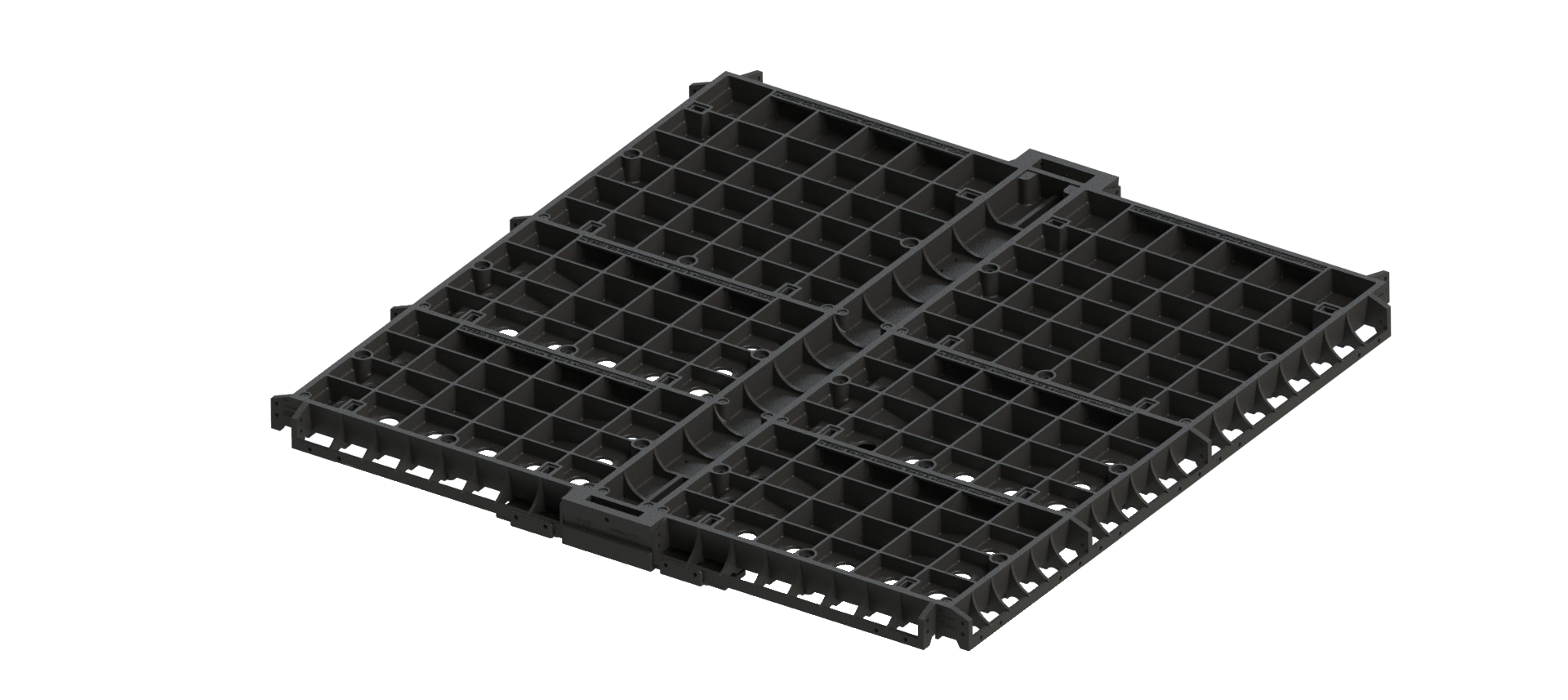

For cover openings that exceed one metre, MACS is a fully assembled modular system engineered to remove the complexity, cost and delay that conventional multipart covers bring to a project.

MACS is manufactured in Australia and delivered fully assembled, ready to place straight onto the structure. It is designed for openings beyond the scope of single-piece covers, without the onsite welding, grinding and lead jointing that conventional multipart systems typically demand.

Speed: units can be manufactured in as little as 8 hours, well ahead of the 3 to 4 week lead times typical of conventional imported systems.

Simplicity: a bolt-together assembly system and simplified installation cuts on-site labour time by up to 80 per cent, with no need for beam pockets cast into a rebate.

Fireproofing: the system is NATA certified and fully compliant with fire-rated panels to AS1530.4:2014, an accreditation many conventional systems cannot offer.
